Tables

Display data in a table with built-in sorting, filtering, and customizable styling.

Writing prompts for tables

You can create tables in Plotly Studio using natural language in different ways:

Use a quick one-line prompt - concise and conversational:

Show me a table with the last 100 created products

Write structured detailed prompts - precise control and consistency:

Display detailed product information sorted by weight

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class, Factory location, Created date

Data:
- All product records
- Sort by weight descending
- Show top 100 products

Options:
- Enable search and filtering
- Add pagination with 25 rows per page

Structured detailed prompts give you more control over which columns to display, sorting, filtering, and other table features. Most examples on this page use this format.

Basic table example

Here's an example of structuring a prompt that creates a basic table. The prompt specifies the columns to include in the table as well as how to sort the table.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- <Interactive options like pagination, filtering, controls>

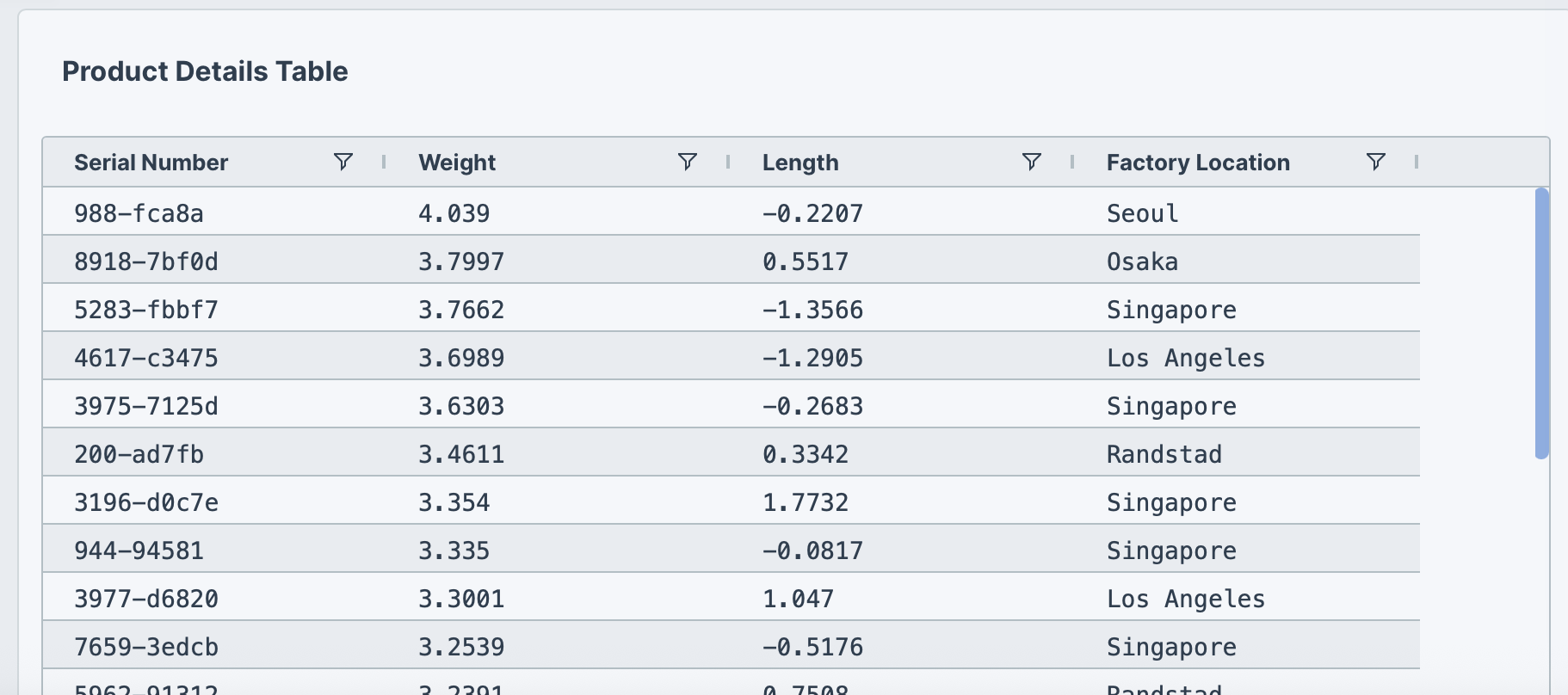

The following example uses this prompt structure with the built-in Plotly Studio dataset:

Product details table

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Factory location

Data:
- Sort by weight descending

Pagination

Use pagination to customize the number of records to show per page.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Add pagination with <number> rows per page

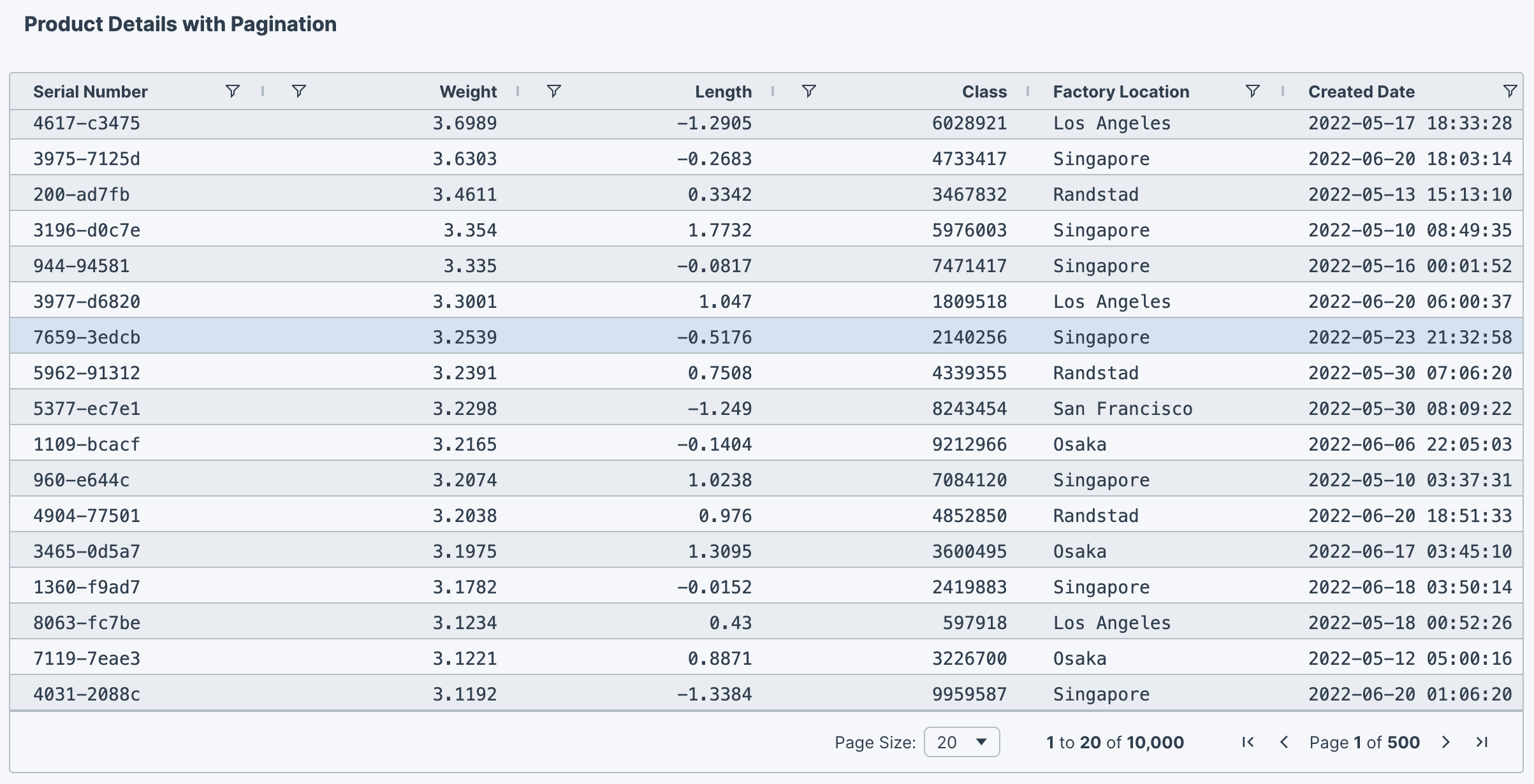

The following example uses this prompt structure with the built-in Plotly Studio dataset:

Product details with pagination

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class, Factory location, Created date

Data:
- Sort by weight descending

Options:
- Add pagination with 20 rows per page

Column alignment

Columns can be right-aligned, center-aligned, or left-aligned.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- <Alignment>-align <column names> columns

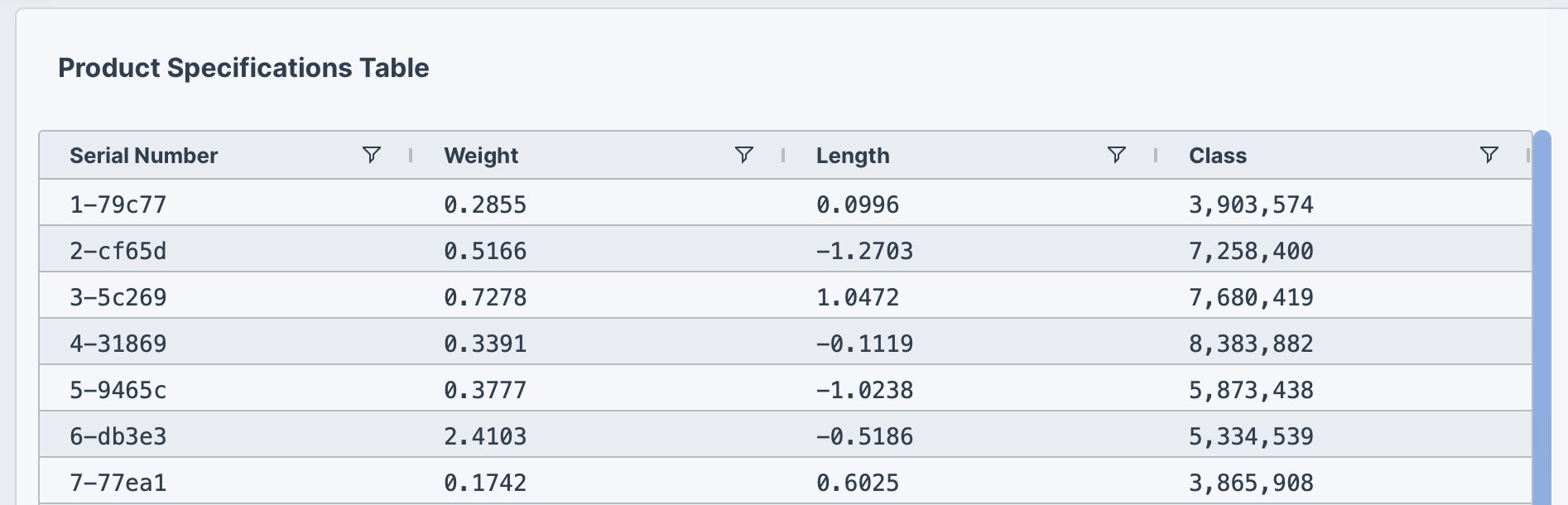

The following example uses this prompt structure with the built-in Plotly Studio dataset:

Product table with column alignment

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class

Data:
- Show top 20 products

Options:
- Left-align all columns

Column pinning

Pinning columns (sometimes referred to as freezing columns) keeps them visible while scrolling the table horizontally. Pinned columns remain fixed as you scroll, allowing you to keep important reference information like IDs or names in view.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Pin <column name> column to the <left/right>

The following example uses this prompt structure with the built-in Plotly Studio dataset:

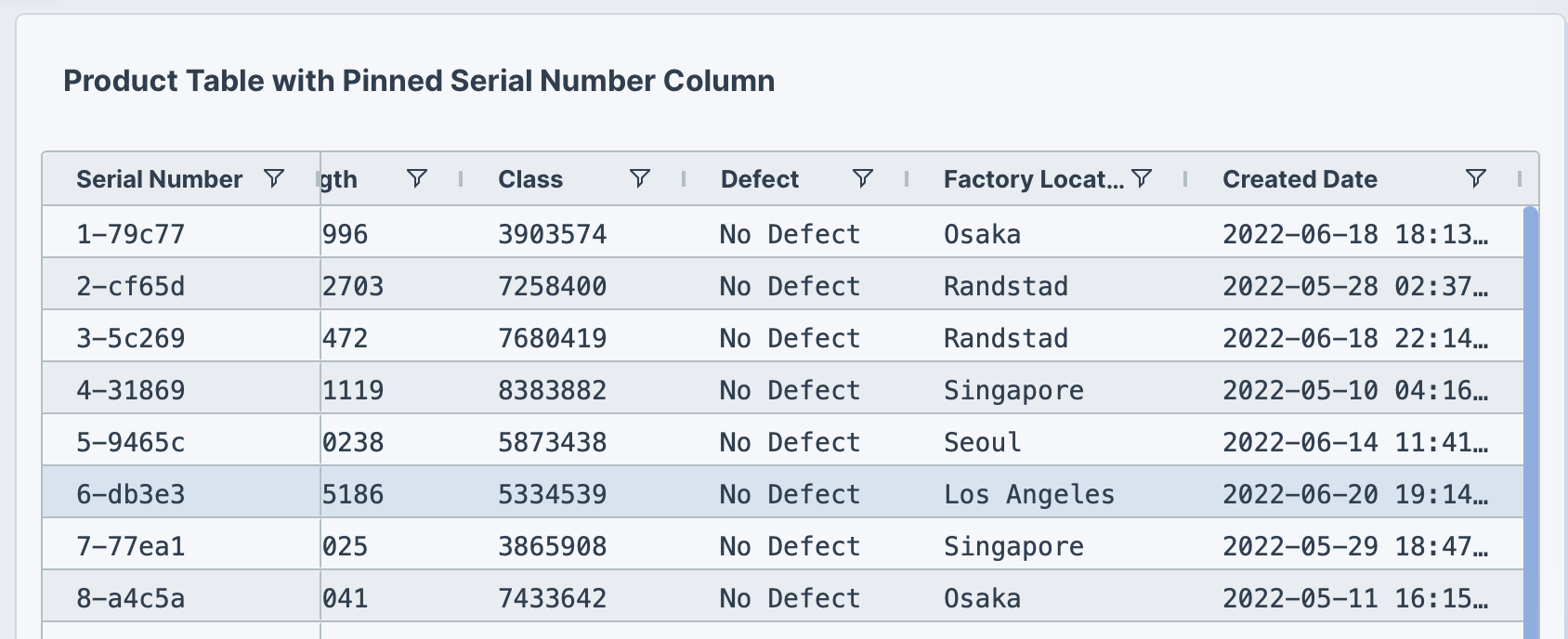

Product table with pinned column

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class, Defect, Factory location, Created date

Data:
- Show top 20 products

Options:
- Pin Serial number column to the left

Formatting values

Format how values are displayed without changing the underlying data. Some examples of formatting data include adding currency symbols, specifying the number of decimal places, and adding a percentage sign.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Format <column name> with <number> decimal places
- Format <column name> as currency
- Format <column name> as percentage

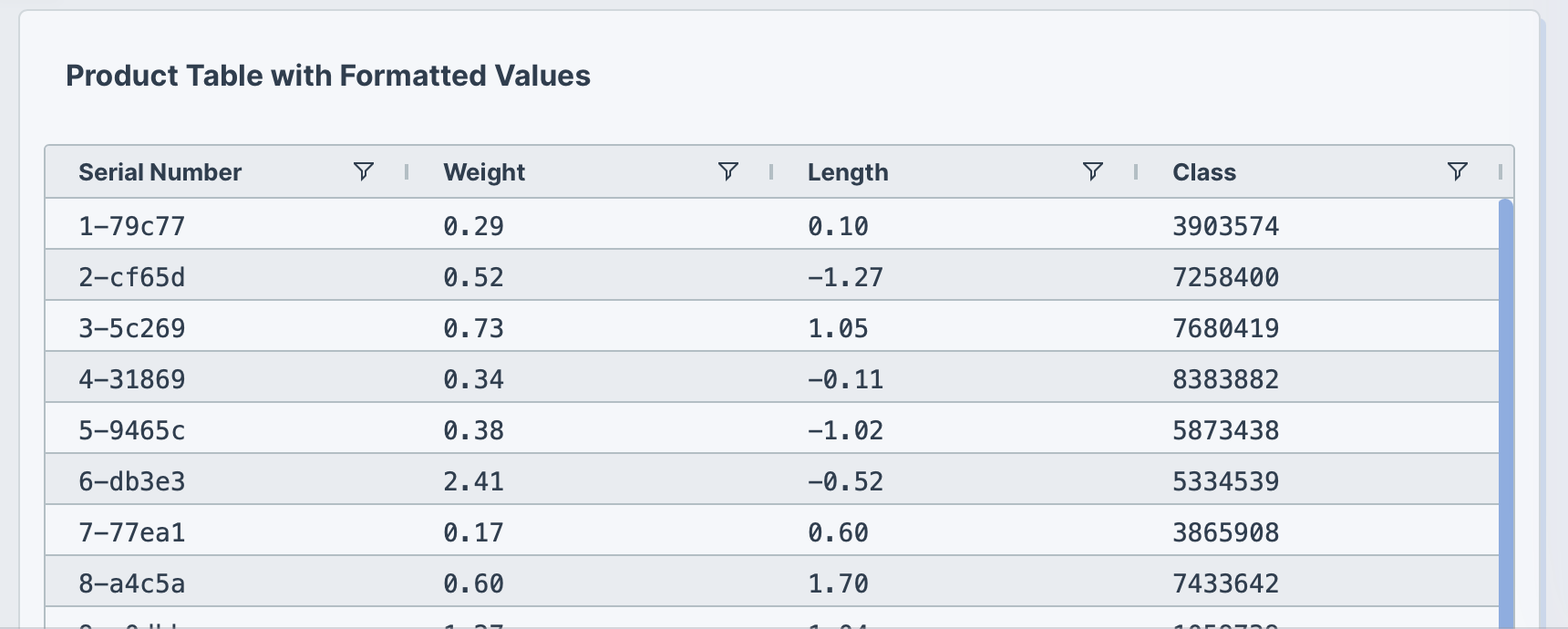

The following example formats numeric columns with specific decimal precision:

Product table with formatted values

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class

Data:
- Show top 20 products

Options:
- Format Weight with 2 decimal places
- Format Length with 2 decimal places

Date formatting

You can display date and time values in different formats by specifying a format in your prompt. For example, "Month Day, Year".

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Format <date column> as "<date format>"

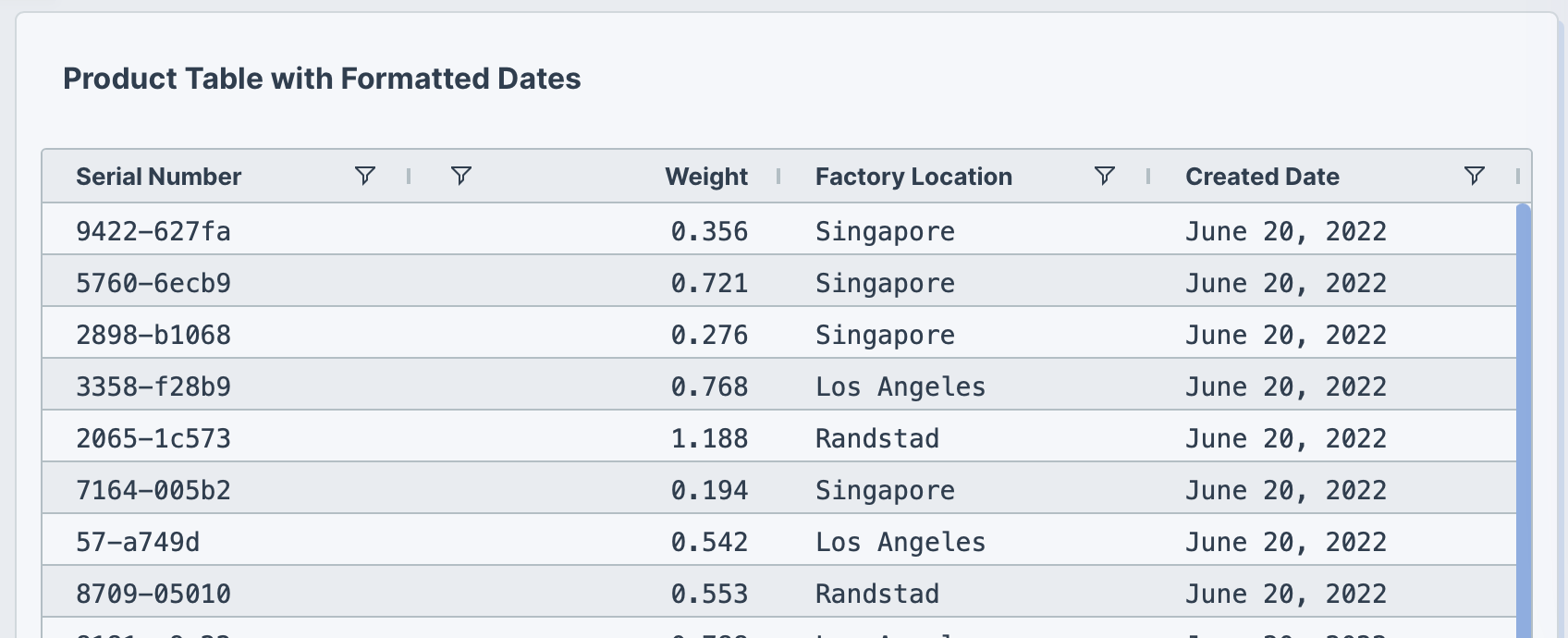

The following example formats the Created date column with a readable date format:

Product table with formatted dates

Chart:
- Type: Table
- Columns: Serial number, Weight, Factory location, Created date

Data:
- Show top 20 products
- Sort by Created date descending

Options:
- Format Created date as "Month Day, Year" (e.g., November 19, 2024)

Checkboxes

Display boolean data ("True"/"False") as checkboxes instead of text.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Display <column name> column as checkboxes (checked for <condition>, unchecked for <condition>)

The following example uses this prompt structure with the built-in Plotly Studio dataset:

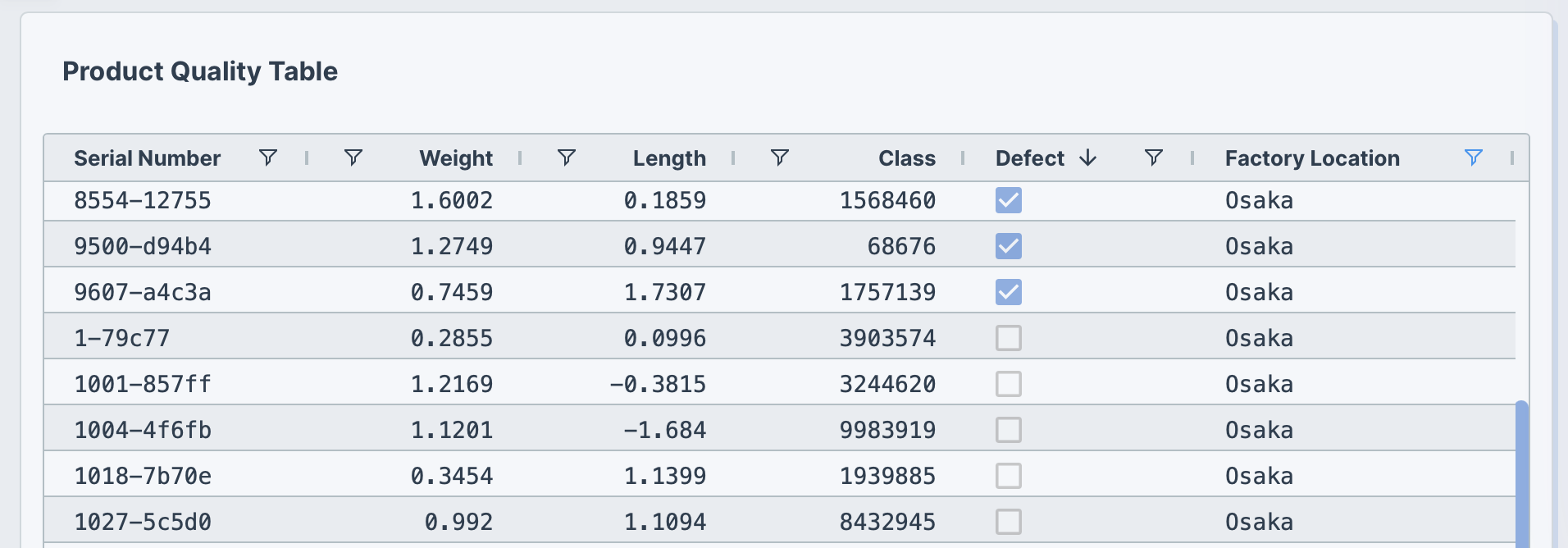

Product quality table

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class, Defect, Factory location

Data:
- Sort by serial number

Options:
- Display Defect column as checkboxes (checked for defects, unchecked for no defects)

Tooltips

Add tooltips that are displayed when hovering over cells to provide additional context or explain what the data represents.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Add tooltips to <column names> showing "<custom tooltip text>"

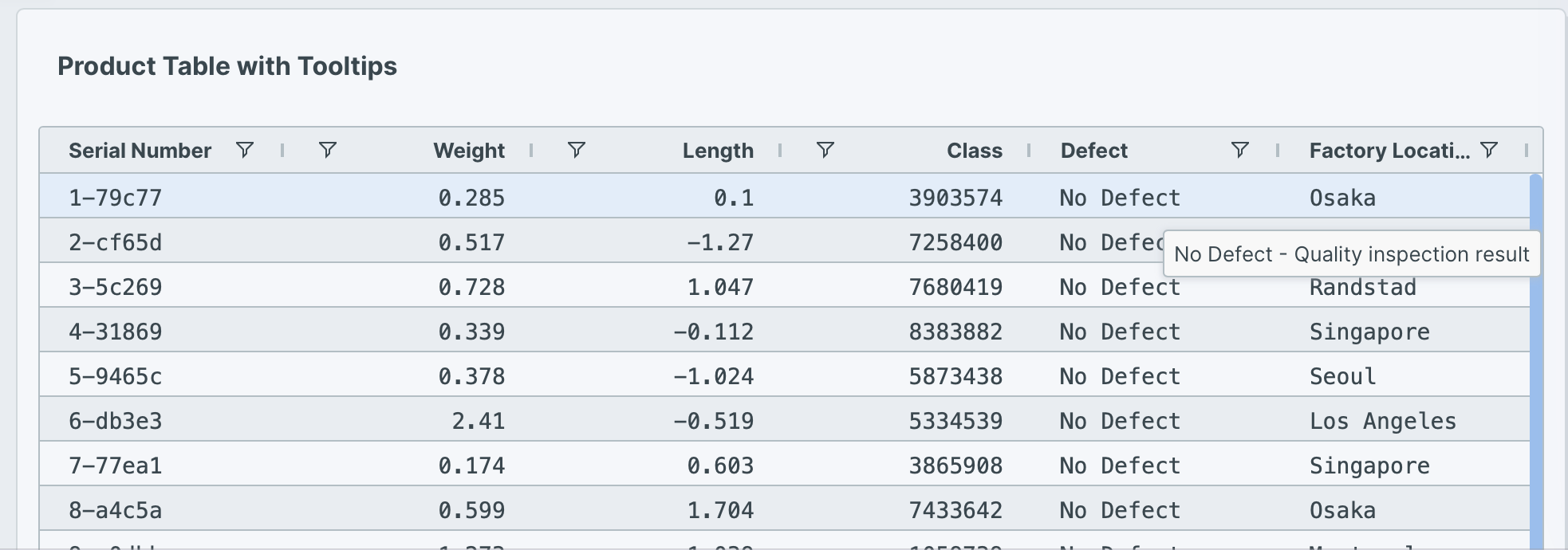

The following example uses this prompt structure with the built-in Plotly Studio dataset:

Product table with tooltips

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Class, Defect, Factory location

Data:
- Show top 20 products

Options:
- Add tooltips to all columns that show the full cell value on hover
- Add tooltip to Weight column showing "Product weight in kilograms"
- Add tooltip to Defect column showing "Quality inspection result"

Aggregation

Group rows together and calculate summary statistics like totals, counts, averages, minimum, or maximum values. Aggregation helps you analyze patterns and trends across categories in your data.

<Table Title>

Chart:
- Type: Table
- Columns: <Grouping column>, <Aggregated column names>

Data:
- Group by <column name>
- <Aggregation type> (e.g., Count, Average, Sum, Min, Max)
- Sort by <column> <direction>

The following example uses this prompt structure with the factory_location column from the built-in Plotly Studio dataset:

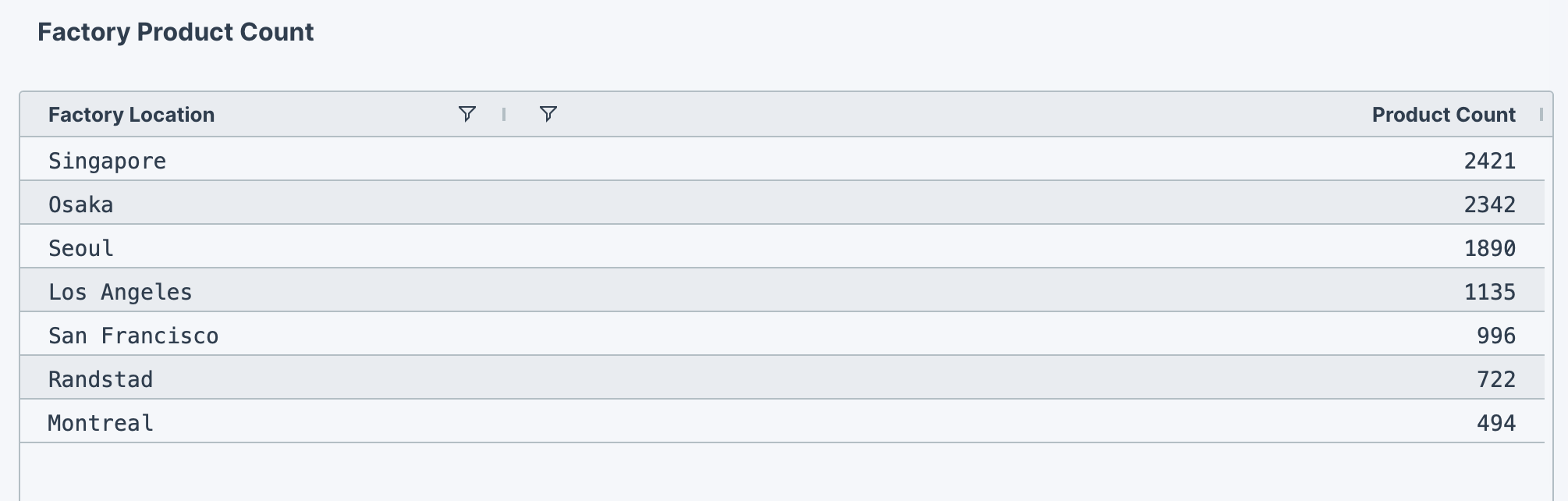

Factory Product Count

Chart:
- Type: Table
- Columns: Factory location, Product count

Data:
- Group by factory location
- Count products per factory
- Sort by count descending

Examples of other aggregations

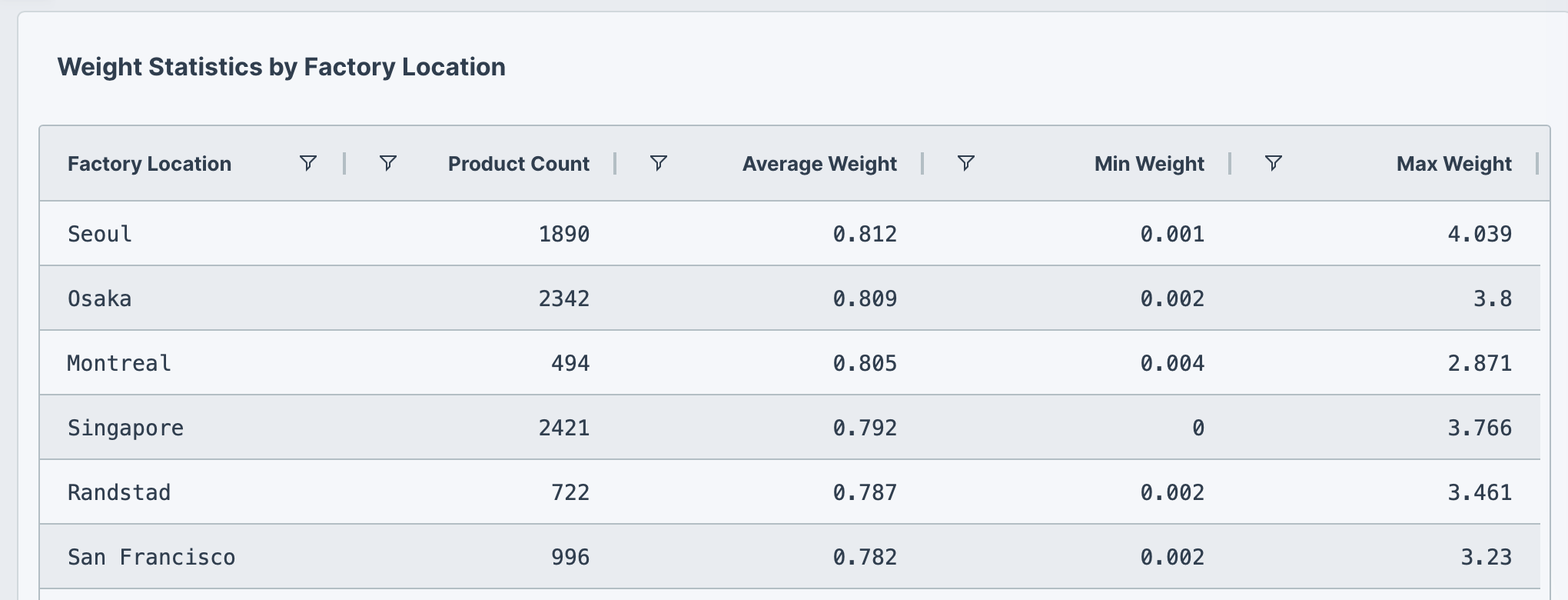

The following prompt example calculates multiple statistics (count, average, min, max) using the built-in Plotly Studio dataset:

Show weight statistics by factory location

Chart:
- Type: Table
- Columns: Factory location, Product count, Average weight, Min weight, Max weight

Data:
- Group by factory location
- Calculate count, average, min, and max for weight
- Sort by average weight descending

Conditional formatting

Apply styles to rows based on values in columns. For example, use color-coding to highlight rows that meet certain thresholds or criteria. This can make it easier to see patterns, outliers, and important rows at a glance.

<Table Title>

Chart:
- Type: Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- Color rows where <column> <condition> as <color> (<description>)

The following example uses this prompt structure with the built-in Plotly Studio dataset:

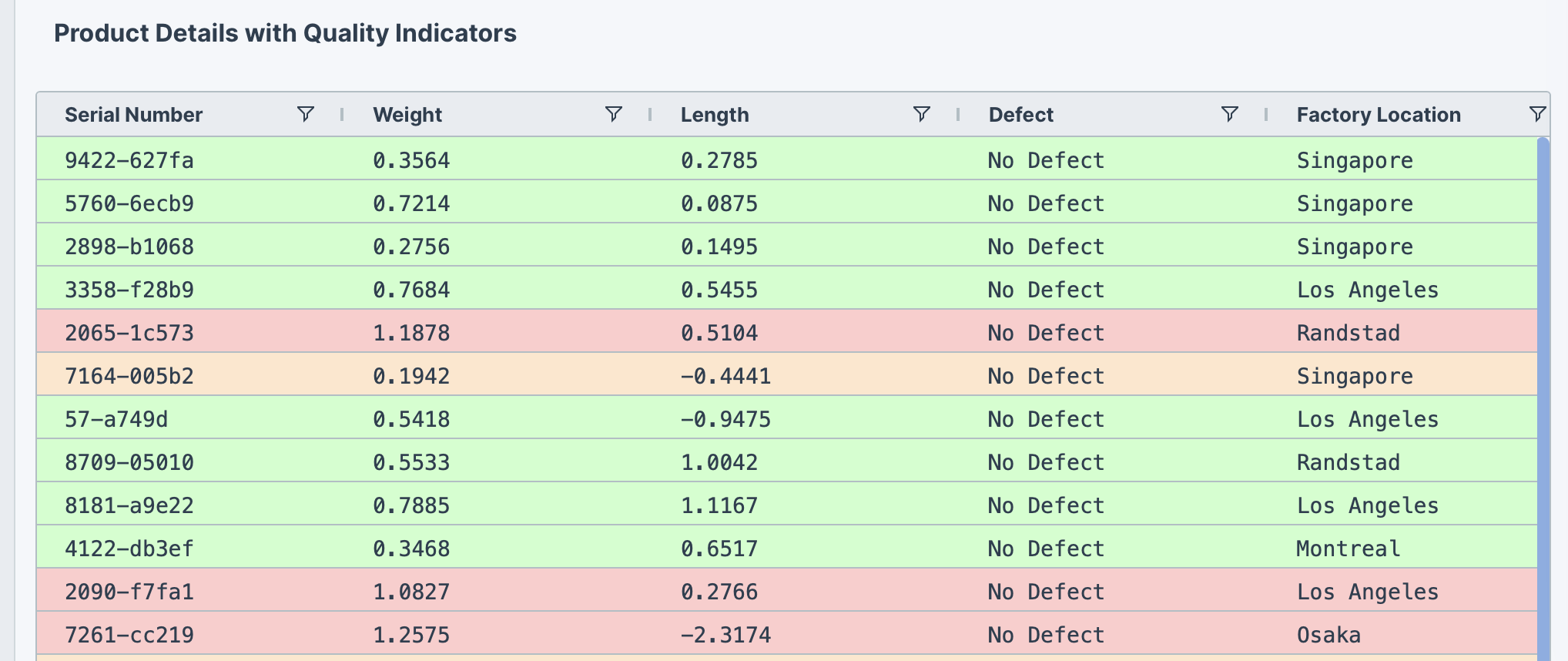

Product quality monitoring table

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Defect, Factory location, Created date

Data:
- Sort by created date descending
- Show top 100 products

Options:
- Color rows where weight > 0.8 as red
- Color rows where weight < 0.2 as orange
- Color rows where defect != "No Defect" as yellow
- Color rows in normal range (0.2-0.8) as green

HTML tables

The earlier examples on this page show tables using Dash AG Grid, which provides out-of-the-box functionality like sorting and pagination. You can also ask Plotly Studio for an HTML table when you want more control over the table's styling.

<Table Title>

Chart:
- Type: HTML Table
- Columns: <Column names>

Data:
- <Data filtering and sorting>

Options:
- <Custom styling options>

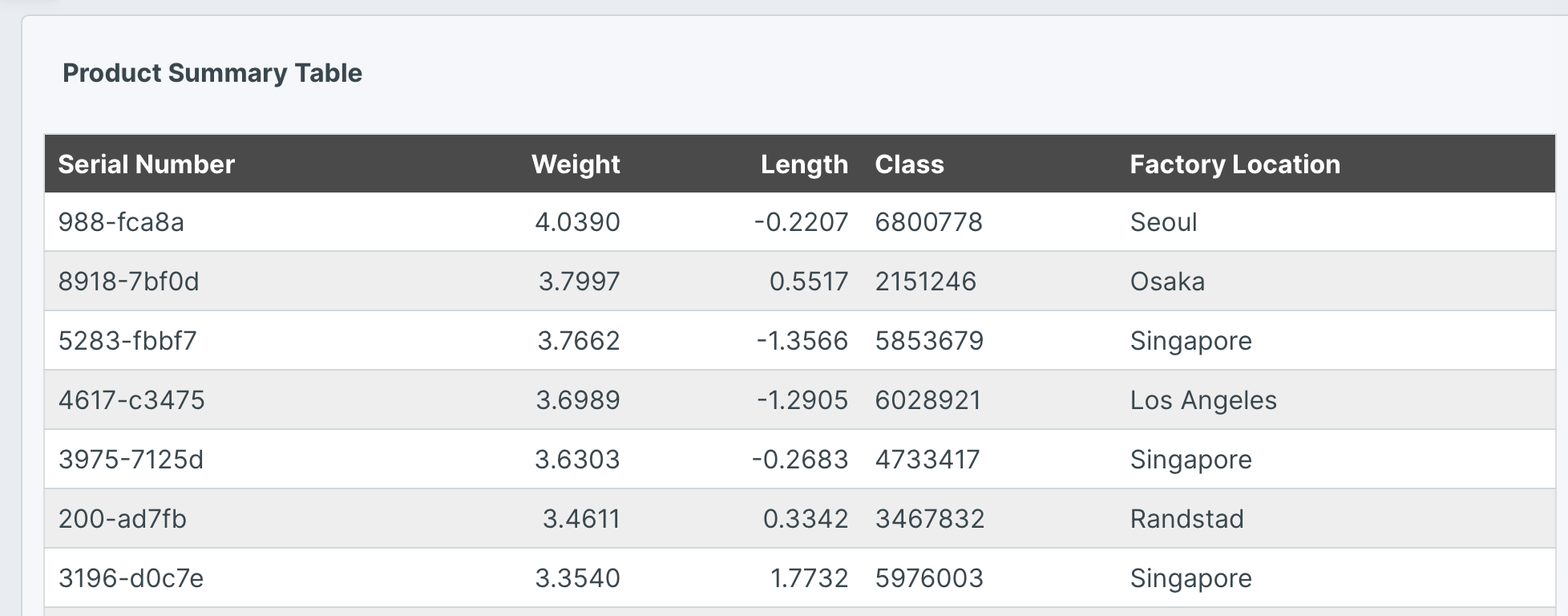

The following example uses this prompt structure with the built-in Plotly Studio dataset:

Product summary HTML table

Chart:
- Type: HTML Table
- Columns: Serial number, Weight, Length, Class, Factory location

Data:
- Show top 20 products
- Sort by weight descending
- Never show more than 200 rows

Options:
- Use alternating row colors (white and #eeeeee light gray)
- Bold column headers with dark gray background (#4a4a4a)
- Add border around entire table
- Right-align Weight and Length columns
- Use minimal cell padding for compact display

Prompt keywords reference

Use these keywords and phrases in your prompts to customize your table.

Chart

Use a Chart: section in your prompt to define the basic structure of your table, including the table type and which columns to display.

For AG Grid tables with built-in features like sorting and pagination:

Chart:
- Type: Table
- Columns: Serial number, Weight, Length, Factory location

For HTML tables with maximum styling customization:

Chart:
- Type: HTML Table
- Columns: Serial number, Weight, Length, Factory location

Here are some keyword suggestions to use in this section:

Keyword/Phrase	Description	Example
Type	Specify the table type as Table or HTML Table	Type: Table or Type: HTML Table
Columns	The columns to display in the table	Columns: Serial number, Weight, Length, Class

Data

Use a Data: section in your prompt to specify how to transform, filter, sort, or aggregate your data before displaying it in the table.

Data:
- Sort by weight descending
- Show top 20 products

Here are some keyword suggestions to use in this section:

Keyword/Phrase	Description	Example
Sort by	Sort the table by a column in ascending or descending order	Sort by weight descending
Show top	Limit the number of rows displayed	Show top 20 products
Filter	Filter data to show only specific records	Filter to show only defect = true
Group by	Group rows together for aggregation	Group by factory location
Aggregation	Calculate summary statistics like count, sum, average, min, or max	Count products per factory
Computed field	Create new calculated fields from existing data	Computed field: Shipping days calculated as the difference between Shipped date and Created date in days

Options

Use an Options: section in your prompt to customize the table's appearance and add interactive features like pagination, formatting, alignment, and conditional styling.

Options:
- Add pagination with 20 rows per page
- Format Weight with 2 decimal places
- Pin Serial number column to the left

Here are some keyword suggestions to use in this section:

Keyword/Phrase	Description	Example
Pagination	Add pagination and specify rows per page	Add pagination with 20 rows per page
Column alignment	Align columns left, center, or right	Right-align Serial number, Weight and Length columns
Pin column	Pin columns to left or right to keep them visible while scrolling	Pin Serial number column to the left
Format values	Format numeric values with decimal places, as currency, or as percentages	Format Weight with 2 decimal places Format Price as currency Format Discount as percentage
Format dates	Display date values in specific formats	Format Created date as "Month Day, Year"
Display as checkboxes	Show boolean values as checkboxes	Display Defect column as checkboxes
Add tooltips	Add hover tooltips to provide additional context	Add tooltip to Weight column showing "Product weight in kilograms"
Color rows	Apply conditional formatting to highlight rows based on conditions	Color rows where weight > 0.8 as red
